MB-77HS HI MONORAIL

Create your space

EPDM gaskets

THERMAL TRANSMITTANCE

Uw = 0,75 W/(m2K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

174 mm

Book a free consultation

About Uw = 0,75 W/(m²K)*

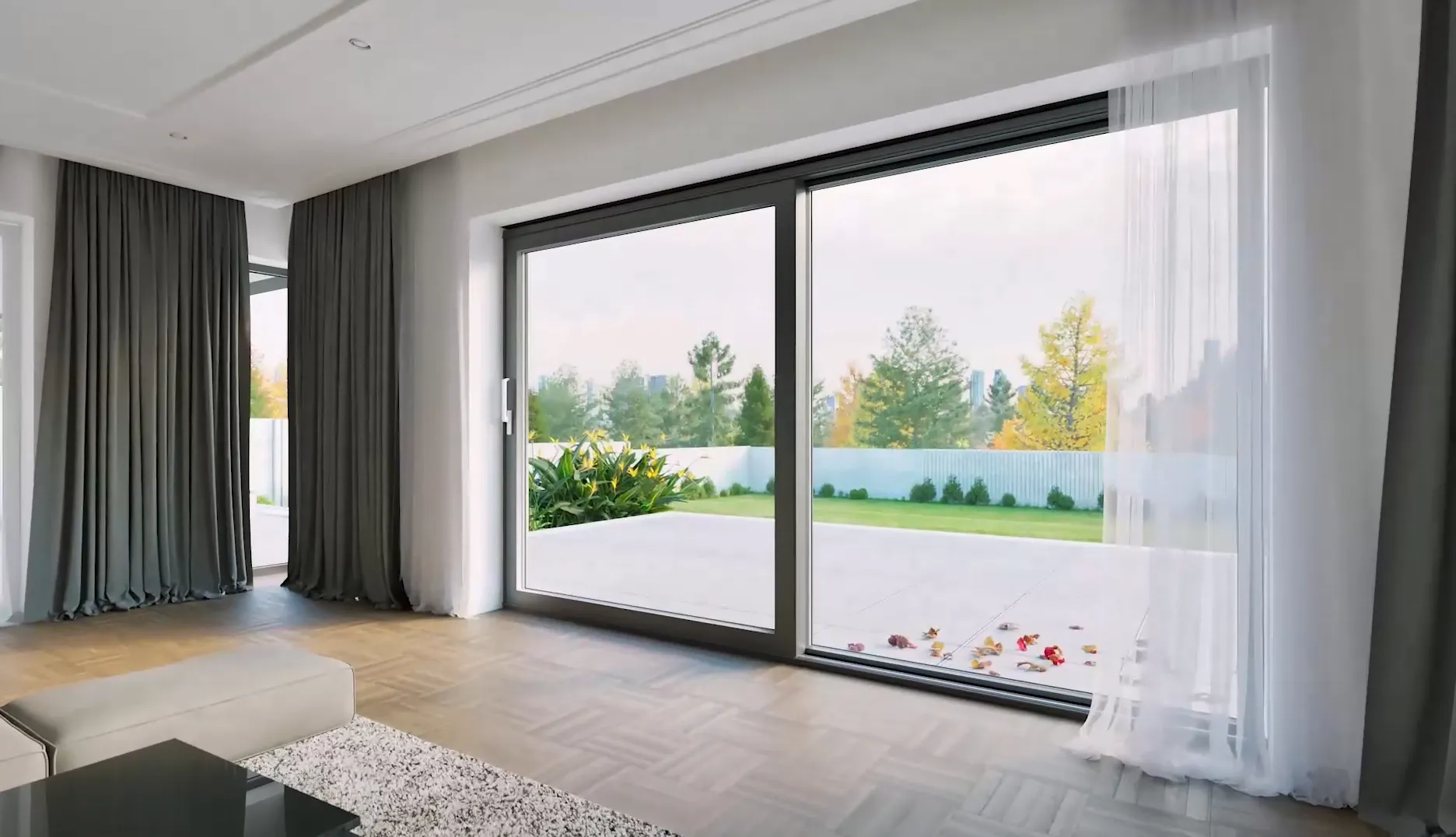

The MB-77HS HI MONORAIL “Lift & Slide” door product is an ideal solution for connecting interior space rooms or conservatories with the outside balcony, terrace or garden area.

Standard:

G-U lift and slide fittings with 3 locking bolts
micro-ventilation striker
aluminium handle on the inside, recessed grip on the outside
3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
glass-pane spacer made of galvanised steel
2 EPDM gaskets in black (external and internal)
system carts with a load capacity of 300 kg
48 mm high threshold
RAL matt color: white (9016), anthracite (7016)

Aluminium terrace system colour range

Choose the colour that suits you from over 200 RAL colours. We offer smooth matt and metallic paints that have a texture or have the so-called special effects (mainly wood-like).

Choose colour:

Green beige

1000

Add this product to your List

Glass

Choose from a variety of glazing packages that meet strict energy and sound insulation standards. The MB-77HS HI MONORAIL sliding system offers a wide range of glass options to fit even highly specific requirements. The offering includes laminated glass (safe and burglar-proof), glass with solar protection, enhanced sound insulation glazing, tempered, ornamental and sandblasted glass.

33.1 safety

33.2 ("safety") matt film

Ornament Master Carre

Compare products

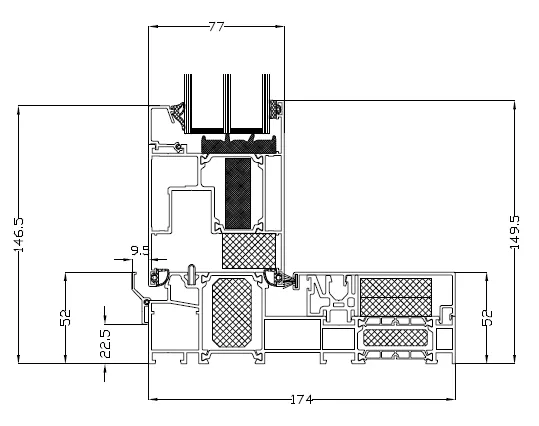

Technical data

Number of chambers

Installation depth

Number of gaskets

Thermal transmittance

Glass packages

MB-77HS HI MONORAIL

174 mm

Uw = 0,75 W/(m2K)*

9-61 mm

Additional options

Muntin bars

Create an elegant yet unique look for your windows and doors. The wide configuration options combined with the available colours make it possible to create many interesting arrangements. Muntin bars can be used on all our window and terrace systems.

View All

Glue-on muntin bars

Internal muntin bars

Vienna muntin bars

Reliable fittings

The fittings used by DRUTEX are the perfect solution in terms of security and functionality of the window and door joinery. In addition, it is possible to: use concealed hinges, use fittings that meet burglary protection requirements in class RC1 or RC2..

View All

Multistep tilt mechanism

Aluminium balcony pull

Reed switch

Hinge covers

Fanlights closer

Sandblasted glass

The possibility of using sandblasted glass allows us to create any graphic patterns indicated by the customer - matte on transparent glass or transparent on matte glass. This is achieved through technology using a high-pressure sand jet..

View All
