IGLO 5 PSK

Choose modern and proven solutions

EPDM gaskets

THERMAL TRANSMITTANCE

Uw = 0,81 W/(m2K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

70 mm

GLASS PACKAGES

24-48 mm

Book a free consultation

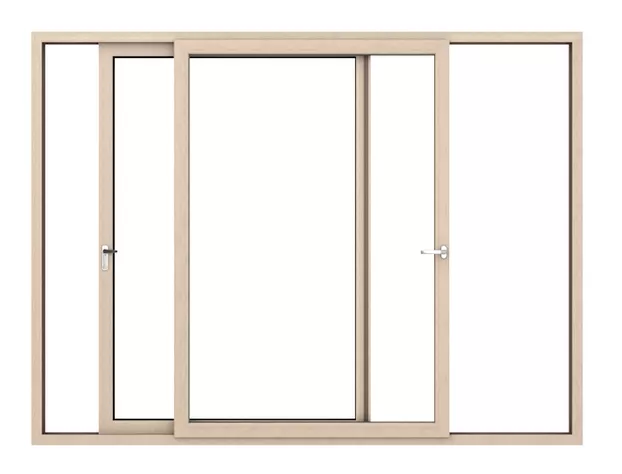

About Iglo 5 PSK

The Iglo 5 PSK is a reliable sliding door system engineered to maximize the natural light inflow while providing unmatched thermal insulation. Robust frame profiles are reinforced with steel, ensuring lasting durability and stability in construction. The hardware is designed to support sashes weighing up to 160 kg, ensuring the doors glide smoothly. Energy-efficient glazing packages and multiple sealing points will enhance the indoor comfort and reduce heat loss, making this model a perfect solution for the Canadian climate. Besides unmatched technical characteristics, Iglo 5 PSK offers a sleek design and versatile customization options, including coating and finishing options.

Standard features:

MACO SKB-S hardware system is engineered to support sashes weighing up to 160 kg
Double-glazed (1-chamber) units filled with argon gas with Ug = 1.1 W/(m²K) for enhanced thermal performance

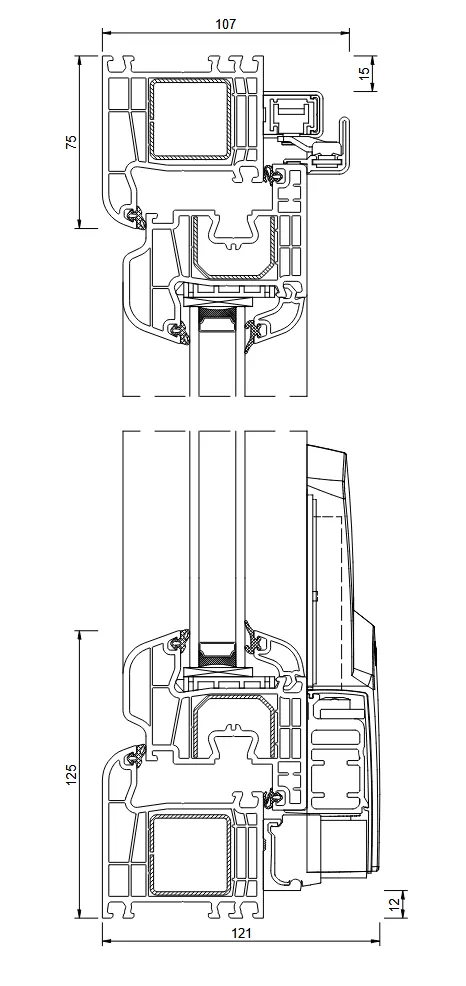

75 mm frame profile for advanced construction strength
1.5 mm full (closed) steel reinforcement in the frame and 2 mm C-shaped steel reinforcement in the sash
Two black EPDM internal and external gaskets for improved insulation
An additional gasket filling the lower fittings’ groove
Galvanized steel glass-pane spacer as standard; Swisspacer Ultimate glass-pane spacer as an optional feature
The white profile core establishes a clean and consistent finish
Aluminum handle with optional locking features
Rail cover in four colors: silver, white, light brown, and brown
5-chamber PVC under-sill trim with an in-built gasket.

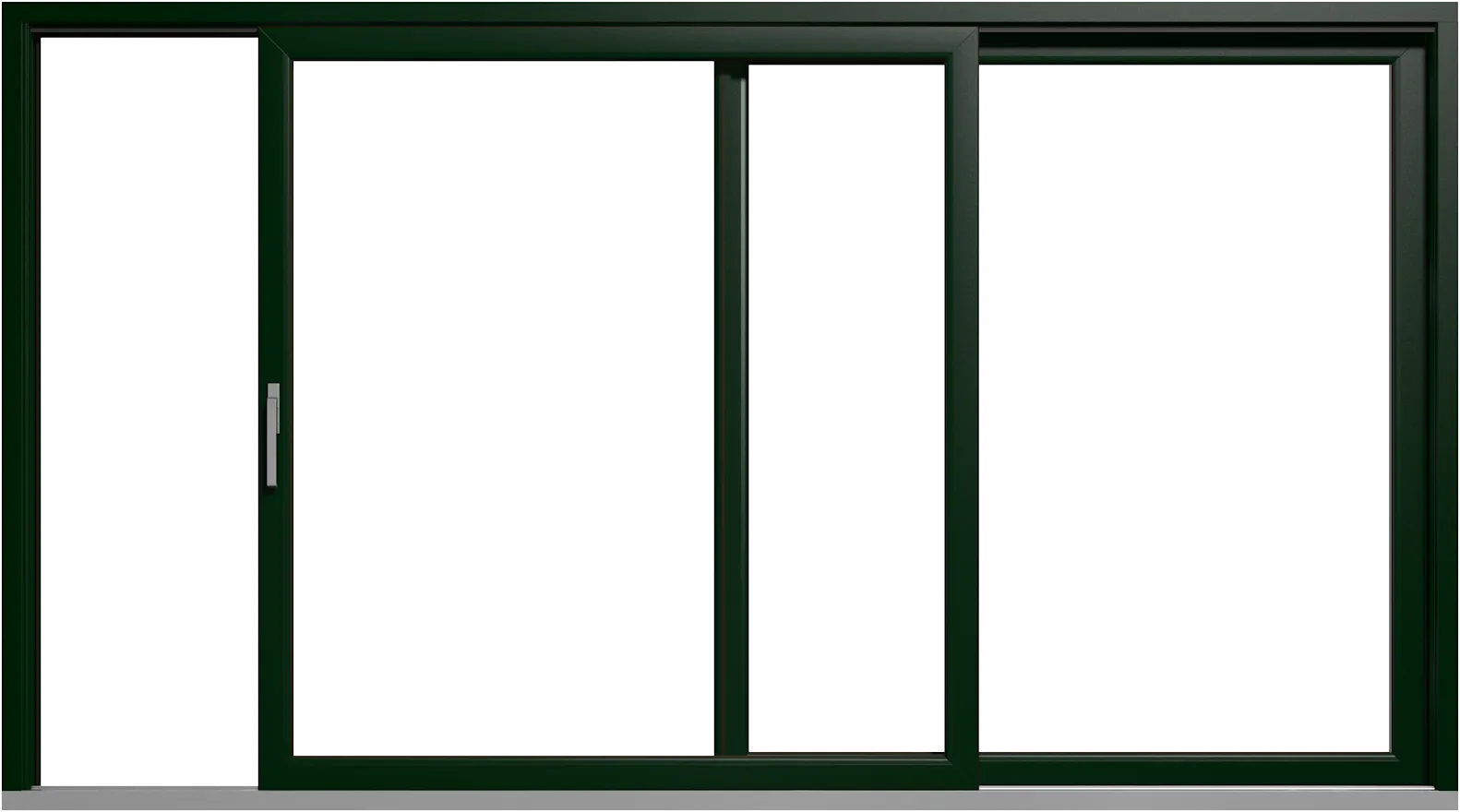

PVC terrace system colour range

Choose the colour that suits you Over 30 veneer colours to choose from.

Choose colour:

White FX

915205-168

Add this product to your List

Glass

Choose from a wide range of available glazing packages to enhance your Iglo 5 PSK doors with additional features. Each glazing option meets strict energy efficiency and sound insulation standards. Extra options offer laminated glass (safe and burglar-proof), sun-protected glazing, glass with advanced sound insulation, tempered, ornamental, and sandblasted glass.

Door Handles and Pull Bars

Our door handles and pull bars are known for their high aesthetics, functionality, and durability. You can customize the color and shape of your handle or pull bar to match it to your doors perfectly.

door handle (silver)

Key Features Iglo 5 PSK PV

The Iglo 5 PSK product line combines functionality, energy efficiency, and contemporary design. Engineered to bring more natural light into your space, this unit is a great fit for small and large spaces. Check more benefits of Iglo 5 PSK doors in the points below:

Enhanced Thermal Insulatio

Double-pane glazing filled with argon gas combined with EPDM gaskets contributes to a substantial reduction of heat transfer and improves the overall energy efficiency of your home. As a result, you benefit from better temperature stability without compromising on the large glazing aesthetics.

Smooth Operatio

The MACO SKB-S hardware supports window sashes up to 160 kg. This feature ensures seamless gliding and tilt operation, even with large glass panes. Reinforced frames make the door construction even stronger, securing the lasting operation of your unit.

Durable Construction and Aesthetics

The Iglo 5 PSK door system provides a modern appearance combined with top-notch technical characteristics. The 75 mm profiles ensure structural stability while allowing for large glass panes, enhancing the overall aesthetics of the unit

Compare products

Technical data

Number of chambers

Installation depth

Number of gaskets

Thermal transmittance

Glass packages

IGLO5 PSK

70 mm

Uw = 0,81 W/(m2K)

24-40 mm

Additional options

Muntin bars

Create an elegant yet unique look for your windows and doors. The wide configuration options combined with the available colours make it possible to create many interesting arrangements. Muntin bars can be used on all our window and terrace systems.

Reliable fittings

The fittings used by DRUTEX are the perfect solution in terms of security and functionality of the window and door joinery. In addition, it is possible to: use concealed hinges, use fittings that meet burglary protection requirements in class RC1 or RC2..

View All

Multistep tilt mechanism

Aluminium balcony pull

Reed switch

Hinge covers

Fanlights closer

Sandblasted glass

The possibility of using sandblasted glass allows us to create any graphic patterns indicated by the customer - matte on transparent glass or transparent on matte glass. This is achieved through technology using a high-pressure sand jet..
