Cor Vision Plus

The beauty of minmalism

Sound insulation

dB = 43

THERMAL TRANSMITTANCE

Uw = 0,9 W/(m2K)*

INSTALLATION DEPTH

180 mm / 278 mm

GLASS PACKAGES

36-56 mm

Book a free consultation

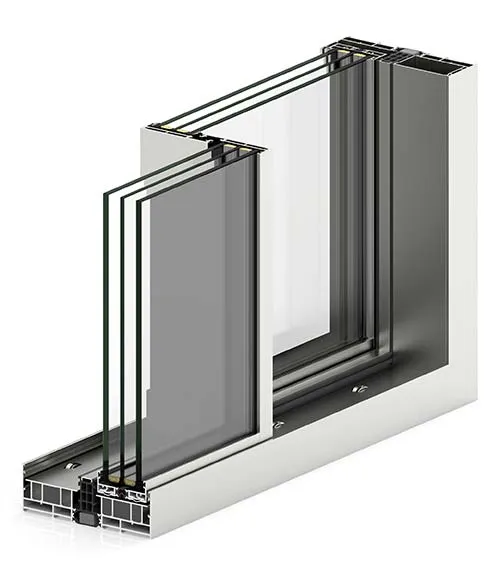

About Cor Vision Plus

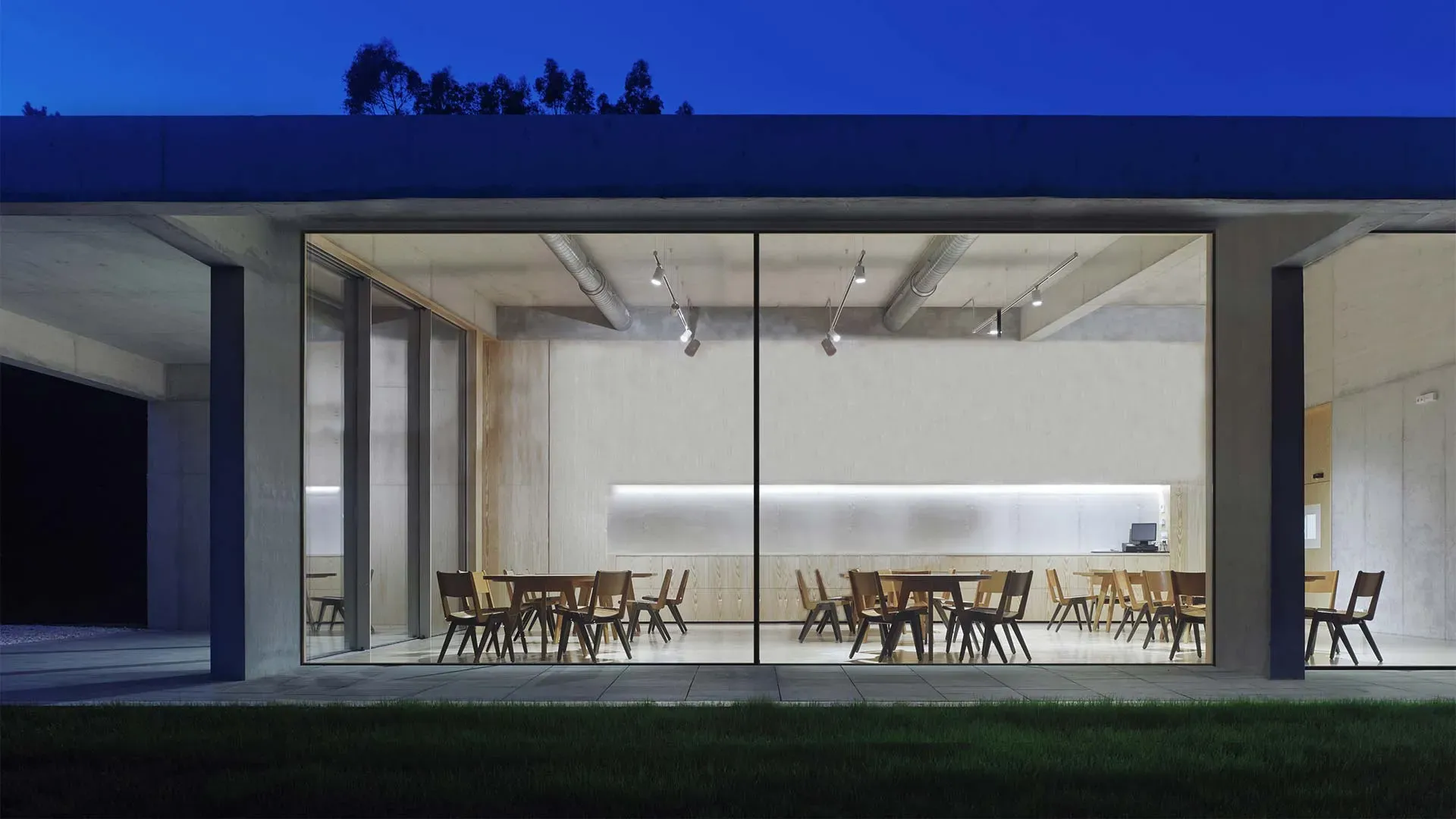

Cor Vision Plus is a large-format sliding door system engineered for smooth performance and minimalist aesthetics. This model features narrow interlock sightlines of 25 mm and frames that can be concealed in the wall, allowing for increased glass area.

The system is designed to support sashes of up to 4 meters, achieving up to 94% of glazed surface. With a maximum glazing capacity of 54 mm, Cor Vision Plus demonstrates top-notch thermal and sound insulation. The manual opening mechanism can handle up to 400 kg, while the motorized one can handle up to 700 kg. Moreover, you can integrate the rail into the floor, making your unit more accessible.

Add this product to your List

Glass

Choose from a variety of glazing packages that meet strict energy and sound insulation standards. The Cor Vision Plus sliding system offers a wide range of glass options to fit even highly specific requirements. The offering includes laminated glass (safe and burglar-proof), glass with solar protection, enhanced sound insulation glazing, tempered, ornamental and sandblasted glass.

33.1 safety

33.2 ("safety") matt film

Ornament Master Carre

Door Handles and Pull Bars

Select from a variety of handles and pull bars available for the Cor Vision Plus door model. Our handles are designed to match any interior style—from modern minimalist spaces to classic designs. All components are built using premium materials, ensuring lasting durability and smooth operation. A wide choice of handles and pull bars makes it easier to achieve both visual and functional results.

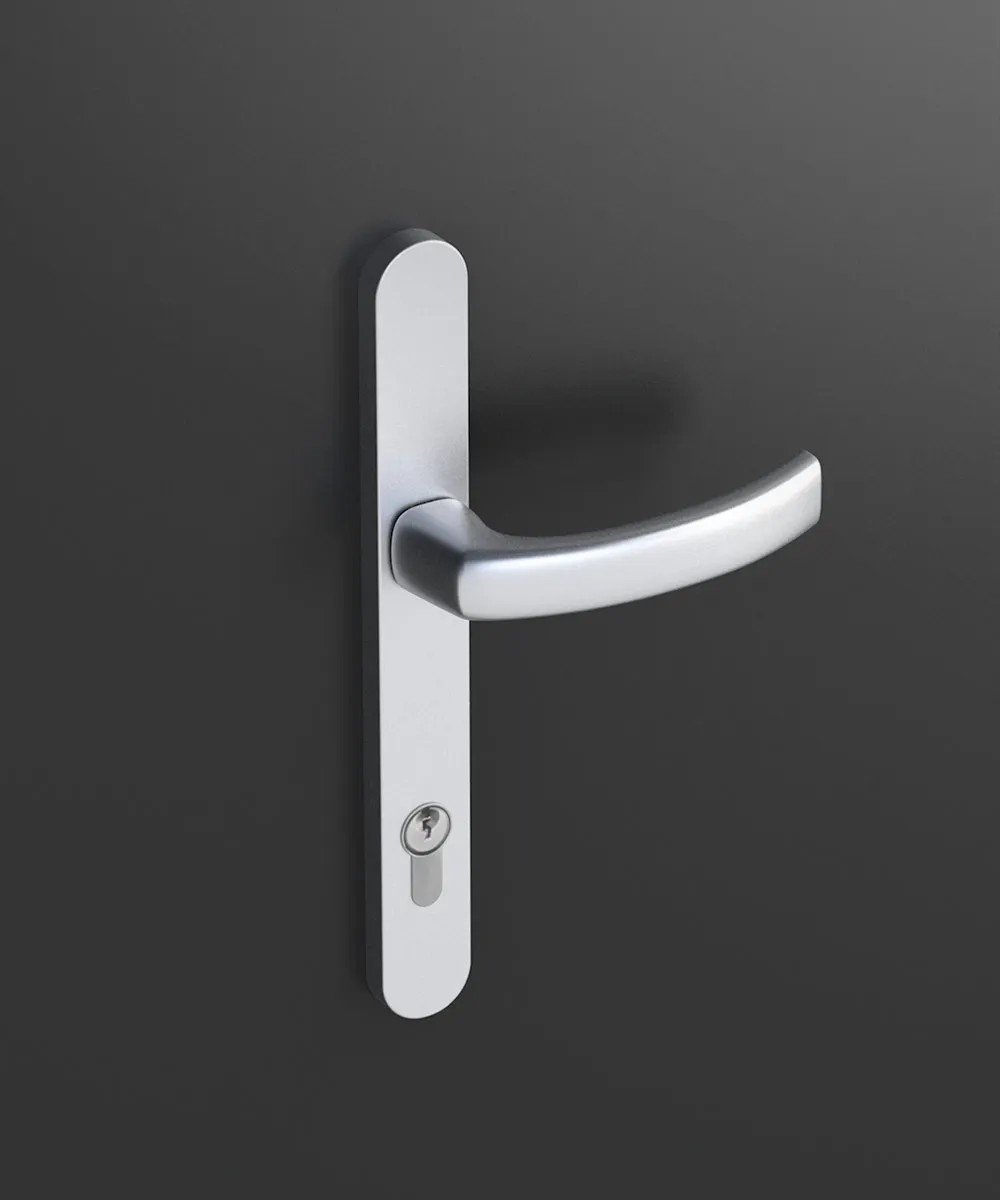

door handle (silver)

Main Features of Cor Vision Plus Aluminum

Cor Vision Plus sliding system combines modern aesthetics with excellent performance, making it a reasonable choice for both residential and commercial projects. Maximum sunlight, energy efficiency, and durability will enhance your comfort year-round.

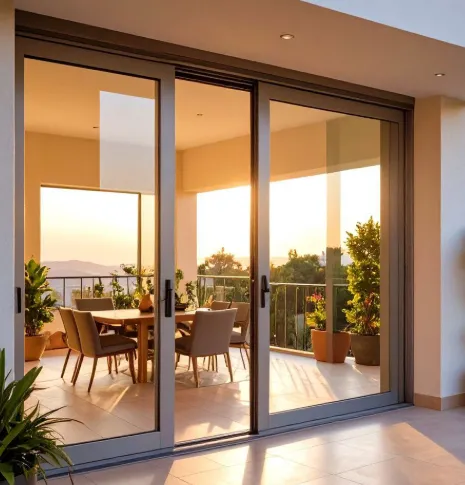

Expansive Glazing

Slim profiles and a robust opening system allow for larger glass surfaces and more natural light. Cor Vision Plus doors establish bright interiors while seamlessly connecting indoor and outdoor spaces.

Top-Notch Performance

The Cor Vision Plus units are designed to accommodate advanced glass packages, offering reliable thermal and acoustic insulation. Comfortable indoor temperatures and considerable noise reduction let you enjoy the benefits of the technical excellence of your doors year-round.

Flexible Design

With the multitude of available configurations, you can match your doors to either contemporary minimalism style or more traditional interior design. The system for large glass panes can be equipped with motorized operation for even smoother daily use. This flexibility makes Cor Vision Plus doors suitable for versatile applications

Compare products

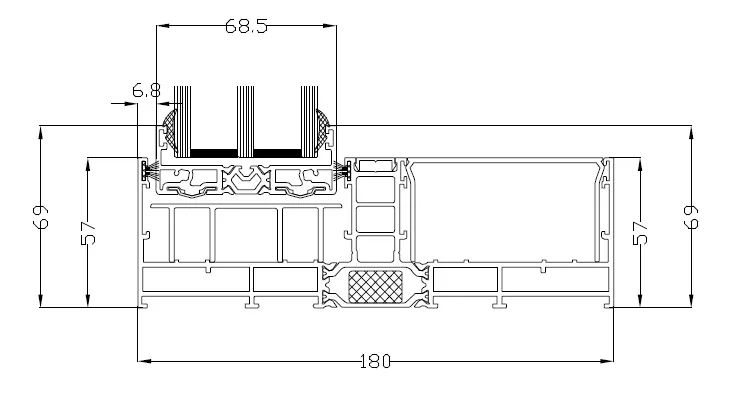

Technical data

Number of chambers

Installation depth

Number of gaskets

Thermal transmittance

Glass packages

Additional options

Muntin bars

Create an elegant yet unique look for your windows and doors. The wide configuration options combined with the available colours make it possible to create many interesting arrangements. Muntin bars can be used on all our window and terrace systems.

View All

Glue-on muntin bars

Internal muntin bars

Vienna muntin bars

Reliable fittings

The fittings used by DRUTEX are the perfect solution in terms of security and functionality of the window and door joinery. In addition, it is possible to: use concealed hinges, use fittings that meet burglary protection requirements in class RC1 or RC2..

View All

Multistep tilt mechanism

Aluminium balcony pull

Reed switch

Hinge covers

Fanlights closer

Sandblasted glass

The possibility of using sandblasted glass allows us to create any graphic patterns indicated by the customer - matte on transparent glass or transparent on matte glass. This is achieved through technology using a high-pressure sand jet..

View All
