Aluminum Doors

MB-78EI Fire-Doors

The best parameters concealed in modern design

EPDM gaskets
2
thermal transmittance
Ud = 1,6
Number of chambers
3
installation depth
78 mm
Book a free consultation

MB-78EI Fire-Doors

Drutex fire-rated doors are an integral part of a technically advanced fireproof system, which is characterised by both tightness and fire insulation. The system achieves a fire resistance class of EI30 to EI60. Durable and solid system construction is guaranteed because of the stable aluminium profile which includes being equipped with special profiled thermal breaks.

Advantagess:

  • thermally insulated aluminium profiles with a depth of 78 mm
  • fire-rated glass, with options to choose from a range of glass types
  • fittings meeting fire-rated requirements
  • special swelling and ceramic sealing, preventing smoke and fire access
  • wide range of RAL colours, special colours and structures
  • 20 mm to 45 mm and 47 mm to 49 mm thick glass infill

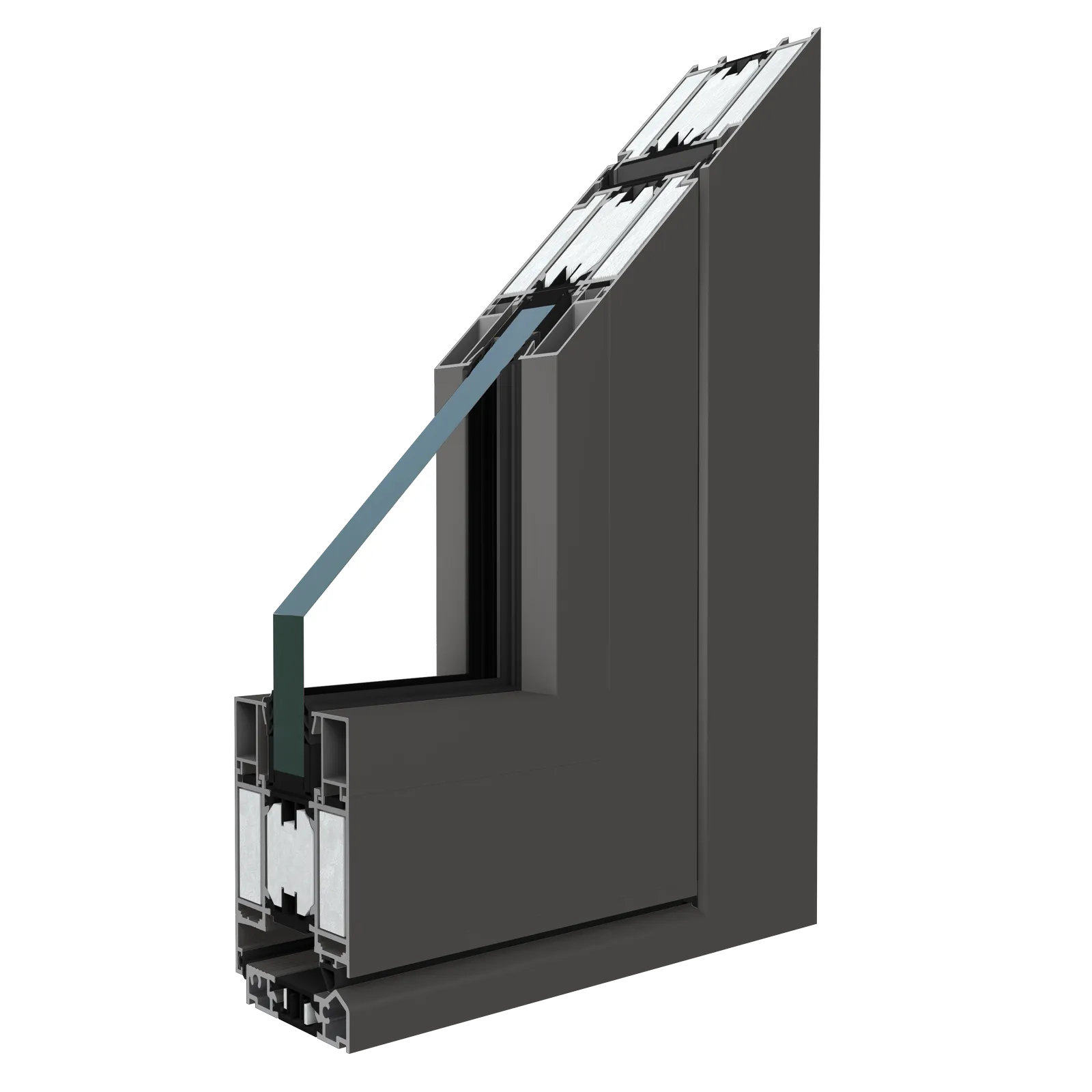

mb78_ei_przekroj

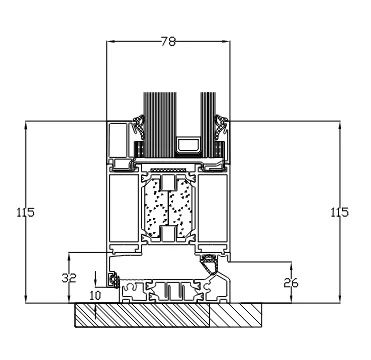

mb-78_ei30_drzwi

Colour options for aluminium doors

Choose a colour that suits you. Over 200 door colours from the RAL colour chart. We offer plain matt paints, metallic paints with texture, and so-called special effects (including wood-effect finishes).

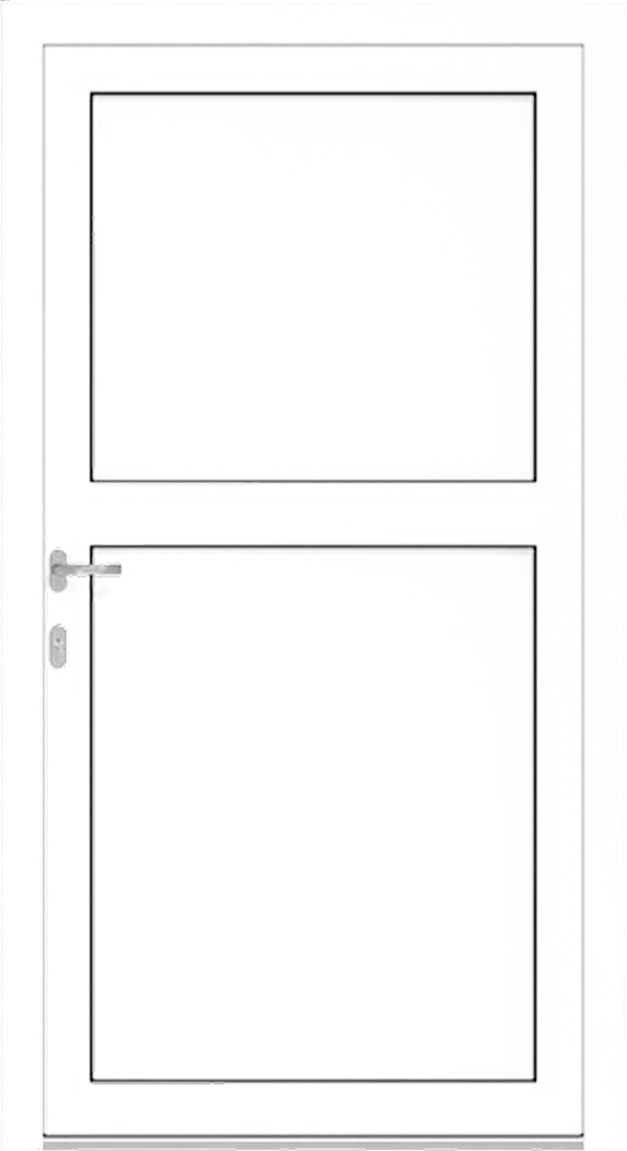

Window
Choose colour:
Green beige
1000

Add this product to your List

Door Handles and Pull Bars

Our handles for MB-78EI Fire-Doors doors are made of PVC, aluminum, and wood. Each of the handle materials offers high aesthetics, functionality, and durability. Thus, you can choose your own configuration of color, material, and design, and rest assured your handles will serve you for decades.

Door handle R35A/2000M
Door handle R35A/2000M
M2 door rail (brown)
M2 door rail (brown)
M2 door rail (RAL 9006)
M2 door rail (RAL 9006)

Compare products

Technical data
Number of chambers
Installation depth
Number of gaskets
Thermal transmittance
Infills with a thickness of
MB-86N SI
MB-86N SI
3
77 mm
2
Ud = 0,83 W/(m2K)**Single-leaf door measuring 1,100x2,300 mm: for the WASHINGTON ZERO door model – using a both-side aligned panel.
15-60 mm glass, batch panel 36 mm, overlay panel 77 mm
SOFTLINE 68, 78, 88
SOFTLINE 68, 78, 88
Solid profile
68 mm
2
Softline 68 Uw = 1.1 W/(m2K)* Softline 78 Uw = 0.9 W/(m2K)** Softline 88 Uw = 0.85 W/(m2K)****Glazing with argon and Swisspacer Ultimate spacer bar TMP4/U10/FL4/U10/TMP4 **Glazing with argon and Swisspacer Ultimate spacer bar TMP4/U14/FL4/U14/TMP4 ***Glazing with argon and Swisspacer Ultimate spacer bar TMP4/U18/FL4/U18/TMP4
24-32 mm glass
IGLO 5
IGLO 5
5
70 mm
2
Ud = 1,0 W/(m2K)**Single-leaf door measuring 1,100x2,300 mm: glass with argon and the Swisspacer Ultimate TMP4/U14/FL4/U14/TMP4 spacer bar.
22.5-41 mm glass, batch panel 36 mm
IGLO ENERGY
IGLO ENERGY
7
82 mm
2
Ud = 0,8 W/(m2K)**Single-leaf door measuring 1,100x2,300 mm: glass with argon and the Swisspacer Ultimate TMP4/U18/FL4/U18/TMP4 spacer bar.
22.5-49.5 mm glass, batch panel 36 mm
