IGLO 5 Classic

The best parameters concealed in modern design

Sound insulation

dB = 34-42

EPDM gaskets

thermal transmittance

Uw = 0,94 W/(m2K)*

number of chambers

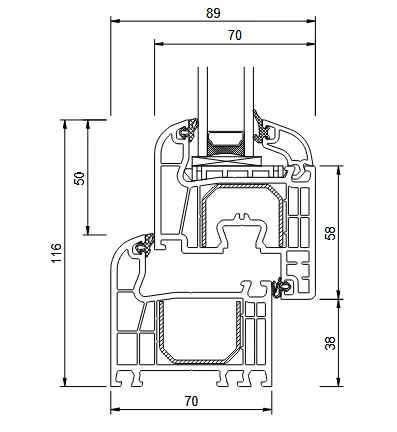

installation depth

70 mm

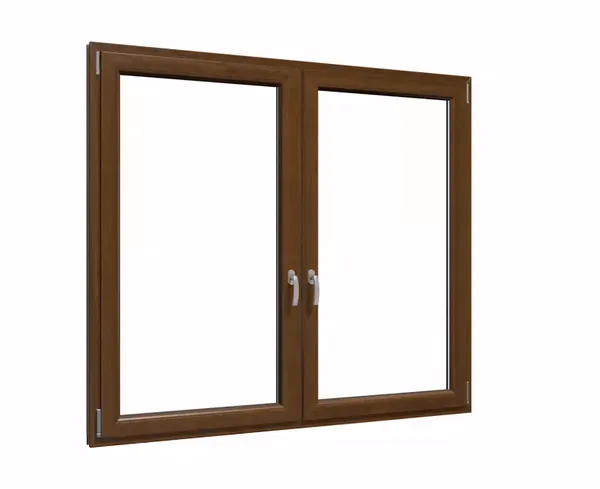

IGLO 5 Classic

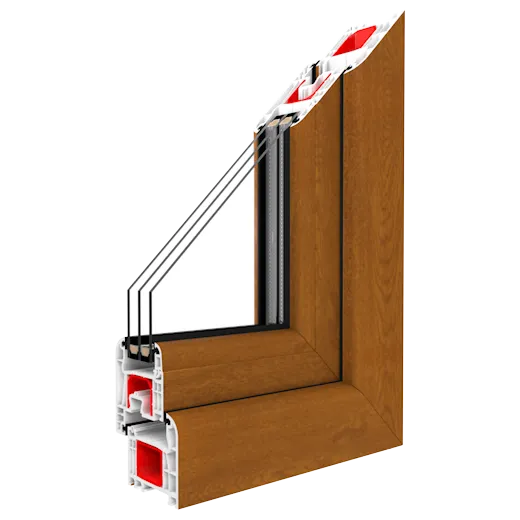

A 5-chamber system features very good thermal insulation parameters. Our innovative solution is based on a snow-white A-class profile made exclusively of primary materials to ensure the highest quality. These windows are perfect for both warm and cold climates.

Standard:

MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anticorrosion coating for long-lasting protection and smooth operation of the fitting
sash lifter (lifting mishandling device – depending on window height
microventilation in tilt and turn windows
hinge covers in 4 colours: white, silver, light brown, brown

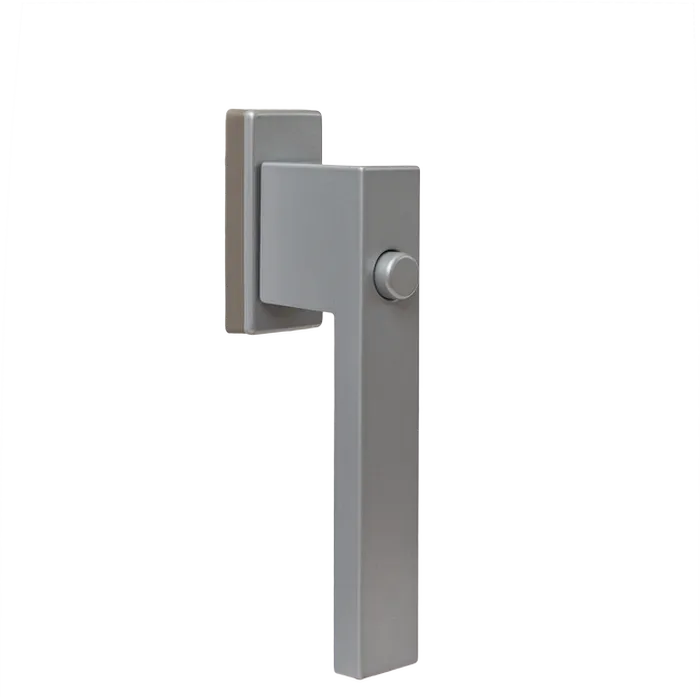

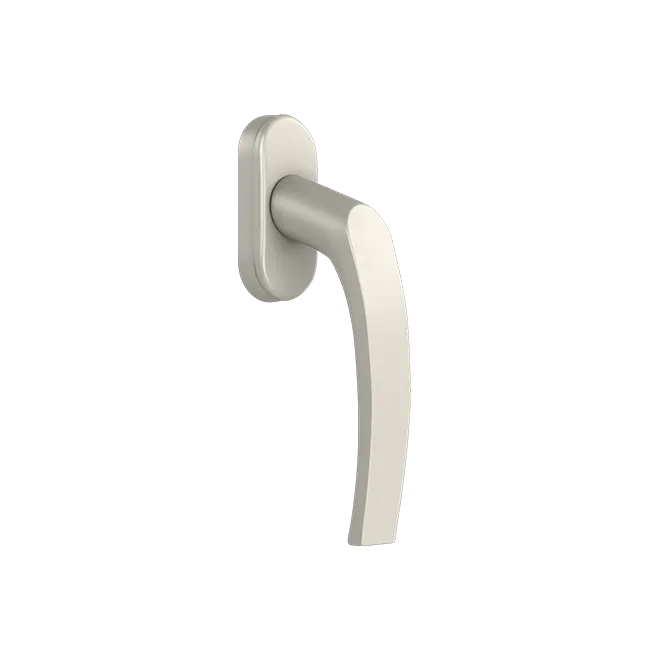

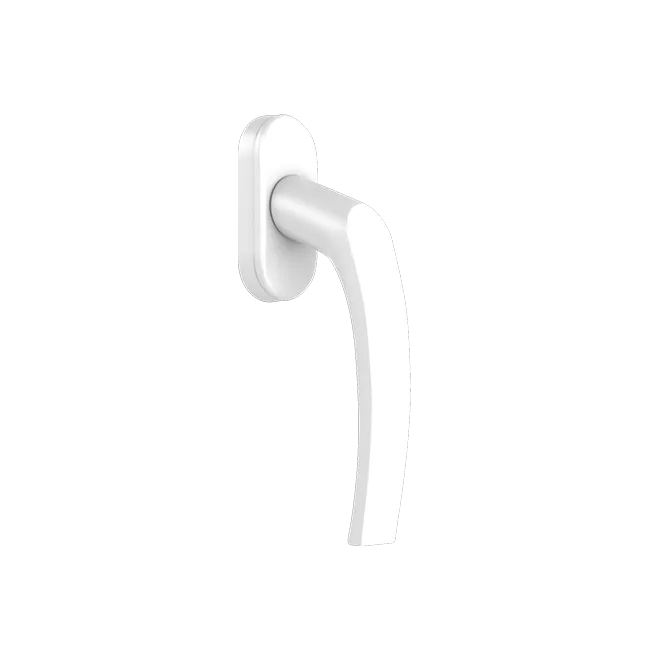

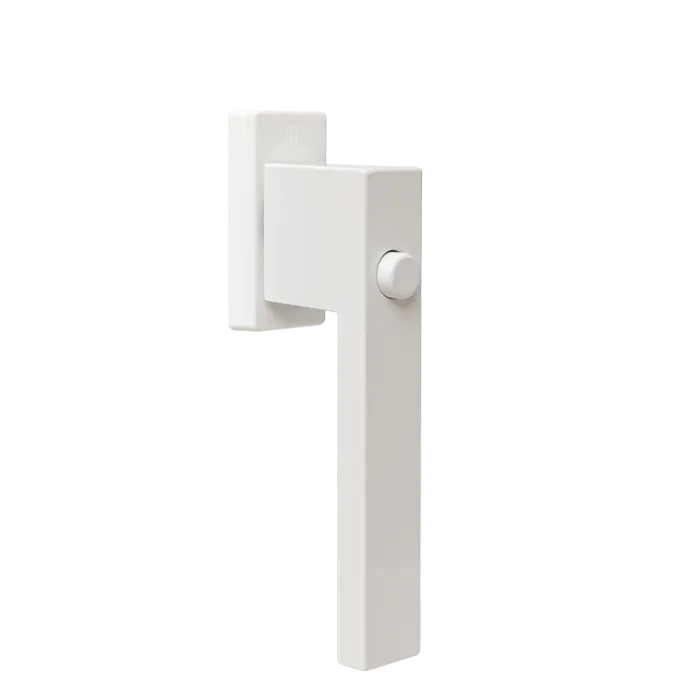

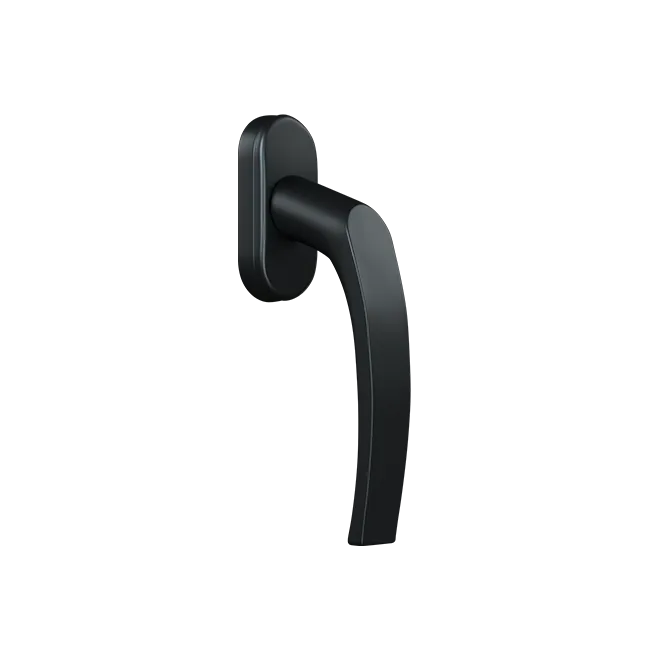

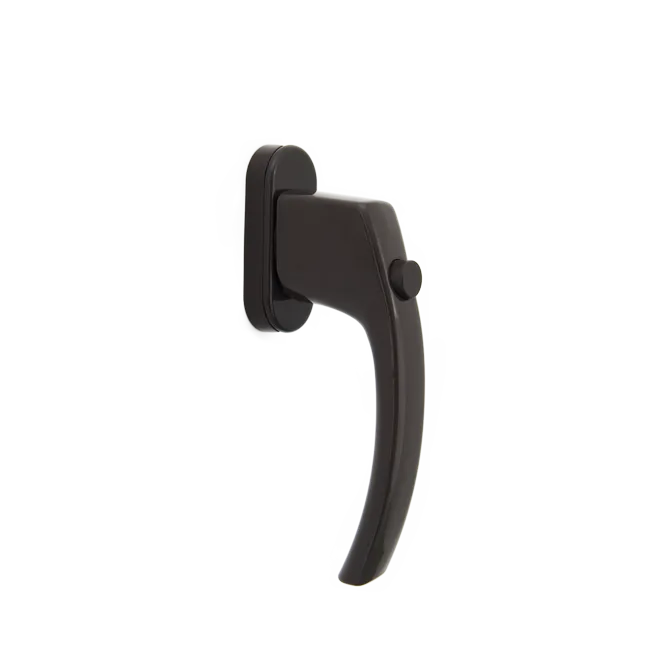

aluminium handle
2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
galvanised steel glass-pane spacer optional Swisspacer Ultimate glass-pane spacer
2 EPDM gaskets in black (external and internal)
gasket filling the lower fittings groove
1.5 mm steel reinforcement for frame and sash (2 mm for balcony door sash), ,,c”-shaped
profile core in white
5-chamber PVC under-sill trim with gasket

The profile is available in two colours: white and brown.

PVC window colour range

Choose the colour that suits you Over 30 veneer colours to choose from.

Choose colour:

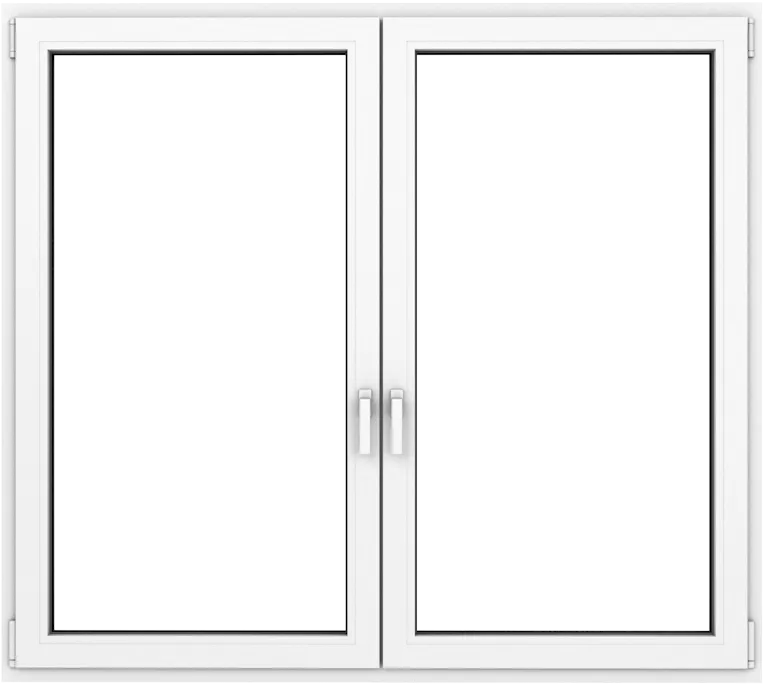

White FX

915205-168

Glass

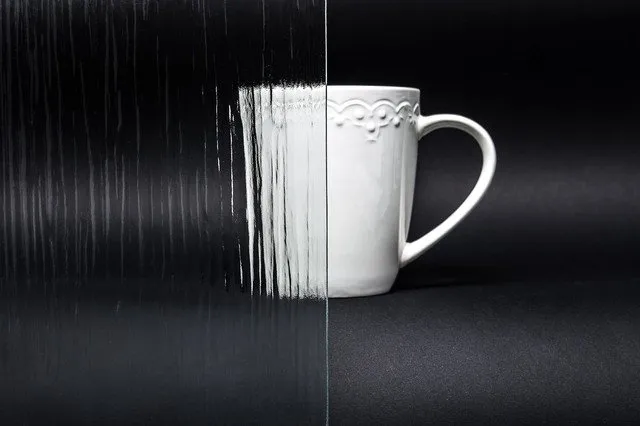

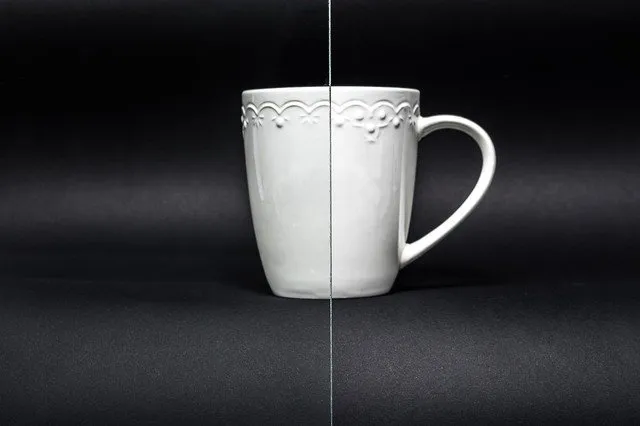

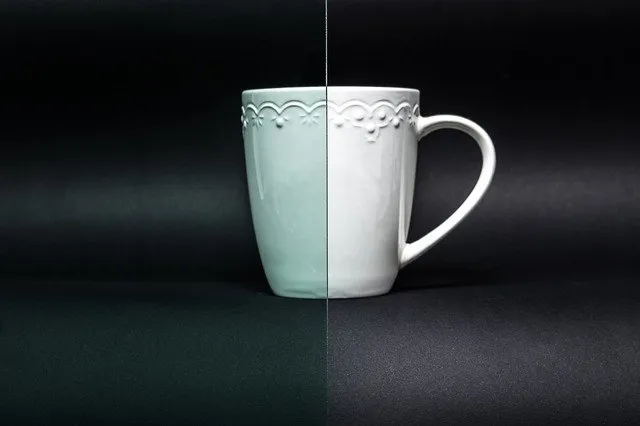

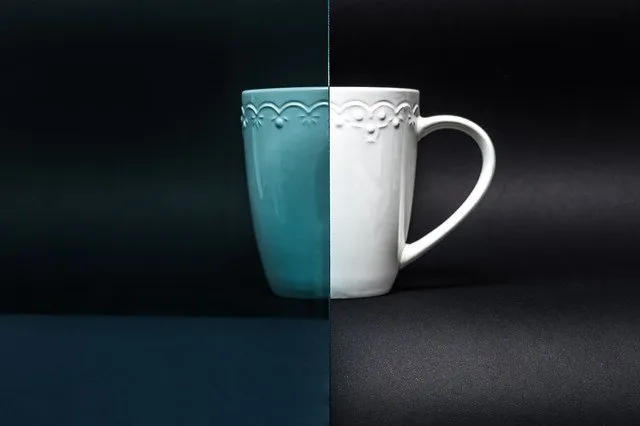

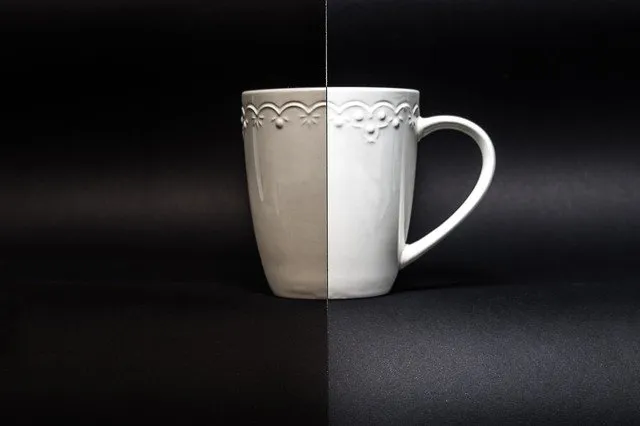

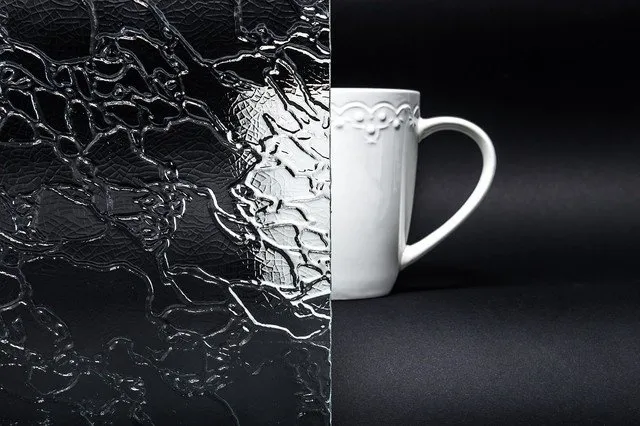

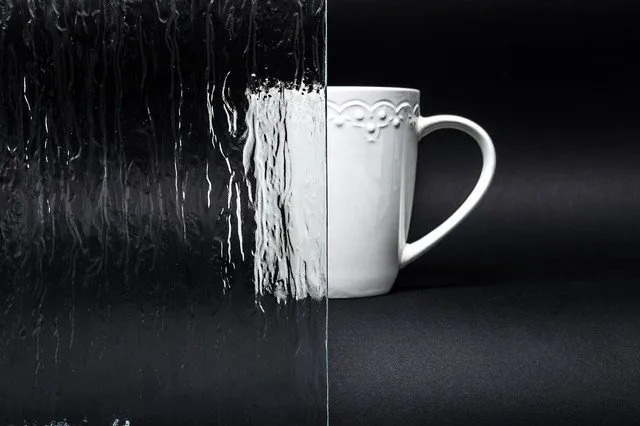

A wide range of composite glass is available to fit windows and doors, meeting strict requirements for energy efficiency and sound insulation. The assortment includes laminated glass (safe and burglar-proof), sun-protected glass, glass with enhanced sound insulation, tempered glass, as well as ornamental and sandblasted options.

L21lZGlhL191cGxvYWQvZG9kYXRraS9zenlieS8zMy4yX19iZXpwaWVjem5hX2ZvbGlhX21hdG93YS5qcGc=

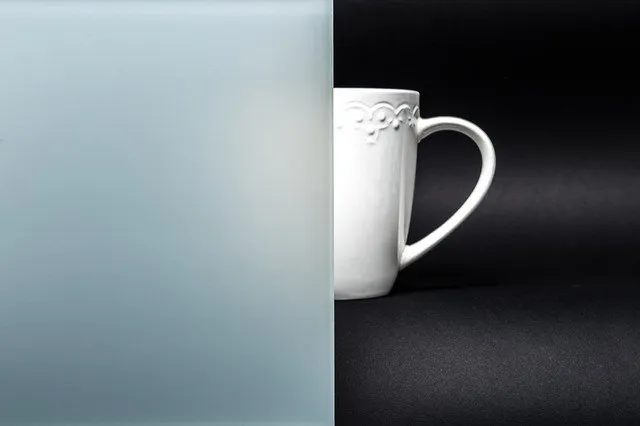

33.2 ("safety") matt film

L21lZGlhL191cGxvYWQvZG9kYXRraS9zenlieS9hbnRpc29sX2JyYXpfNG1tLmpwZw==

Additional options

Muntin bars

Create an elegant yet unique look for your windows and doors. The wide configuration options combined with the available colours make it possible to create many interesting arrangements. Muntin bars can be used on all our window and terrace systems.

View All

Glue-on muntin bars

Internal muntin bars

Vienna muntin bars

Reliable fittings

The fittings used by DRUTEX are the perfect solution in terms of security and functionality of the window and door joinery. In addition, it is possible to: use concealed hinges, use fittings that meet burglary protection requirements in class RC1 or RC2..

View All

Multistep tilt mechanism

Aluminium balcony pull

Reed switch

Hinge covers

Fanlights closer

Sandblasted glass

The possibility of using sandblasted glass allows us to create any graphic patterns indicated by the customer - matte on transparent glass or transparent on matte glass. This is achieved through technology using a high-pressure sand jet..
