MB-86N SI

MB-86N SI

Excellent parameters and durability of aluminium

EPDM gaskets
2
thermal transmittance
Uw = 0,76 W/(m2K)*
number of chambers
3
installation depth
77 mm
Book a free consultation

About MB-86N SI Windows

MB-86N SI aluminum windows stand out among other models due to their unmatched thermal insulation, exceptional durability, and modern design. Match your window to your interior design by choosing from 200 colors and a wide range of additional options for advanced customization. You can further enhance the functionality of your MB-86N SI window by integrating it with Smart Home solutions

Standard features:

  • MACO MULTI-MATIC KS fittings feature two anti-theft strikers with Silber-Look anticorrosion coating ensuring long-lasting protection and smooth operation of the fitting.
  • Sash lifter, a small handle connected to the window sash, which enables safe lifting and lowering of your window.
  • Microventilation feature in tilt and turn windows.
  • Hinge covers are available in three colors: white, silver, and brown.
  • Aluminum handle.
  • Double-glazed (single-chamber) units filled with argon gas providing a heat-loss value of Ug=1.1 W/(m²K).
  • A glass-pane spacer made of galvanised steel ensures long-term stability of the glass unit.
  • The system includes two seals: one EPDM gasket and one central gasket made of foamed EPDM. Both gaskets are available in black.
  • The model is available in matt RAL colors: white (9016), anthracite (7016).

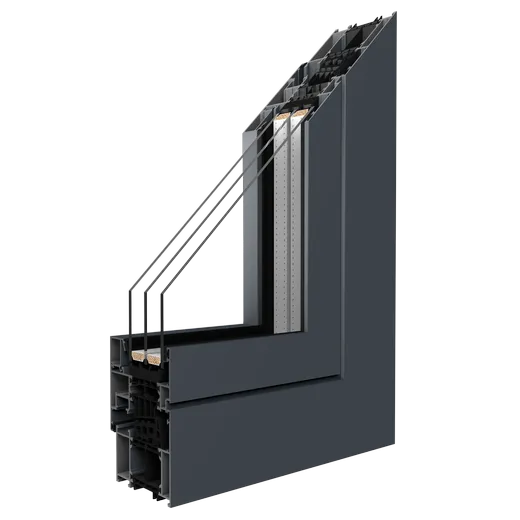

mb_86_si_-_okno_profil

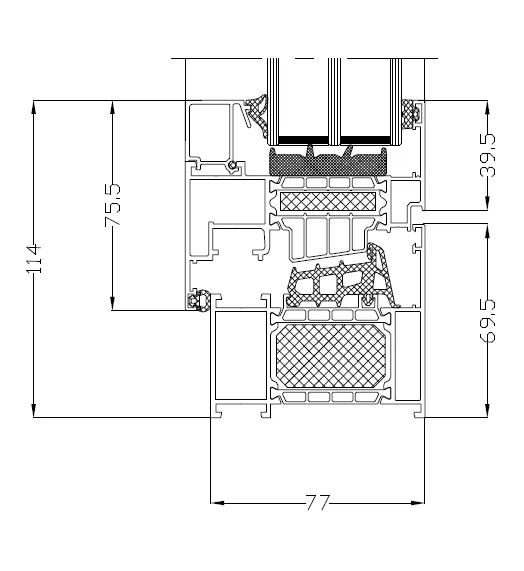

mb-86n_-c

PVC window colour range

Choose the colour that suits you Over 30 veneer colours to choose from.

Window
Choose colour:
Green beige
1000

Add this product to your List

Glass

Lion-Windows Canada offers a wide selection of glazing for your MB-86N SI aluminum windows. All glass options we provide meet strict energy efficiency, sound insulation, and durability requirements. You can choose from a range of glazing options, including sun-protected glass, laminated glass (safe and burglar-proof), glass with enhanced sound and thermal insulation, tempered, ornamental, and sandblasted glass.

33.1 safety
33.1 safety
33.2 (“safety”) matt film
33.2 ("safety") matt film
44.4 anti-burglary
44.4 anti-burglary
Antisol brown 4
Antisol brown 4
Antisol brown 6
Antisol brown 6
Antisol Dark Blue 6
Antisol Dark Blue 6
Antisol green 4
Antisol green 4
Antisol green 6
Antisol green 6
Antisol grey 6
Antisol grey 6
Chinchilla white 4
Chinchilla white 4
Float 4
Float 4
Float 6
Float 6
Mirastar
Mirastar
Ornament Cathedral
Ornament Cathedral
Ornament Delta 4
Ornament Delta 4
Ornament Master Carre
Ornament Master Carre
Ornament Silvit 4
Ornament Silvit 4
Stopsol blue 6
Stopsol blue 6
Stopsol brown 6
Stopsol brown 6
Waterfall 105
Waterfall 105

Handles

Our PVC, aluminum, and wood handles stand out for their functionality, durability, and high aesthetics. With a wide range of colors to choose from, your handles can be perfectly matched to your window frames and interior design.

Window handle with a key – NEVADA (RAL7016)
Window handle with a key - NEVADA (RAL7016)
Window handle with a key – NEVADA (RAL9001)
Window handle with a key - NEVADA (RAL9001)

Additional options

Muntin bars

Create an elegant yet unique look for your windows and doors. The wide configuration options combined with the available colours make it possible to create many interesting arrangements. Muntin bars can be used on all our window and terrace systems.

View All
Glue-on muntin bars
Glue-on muntin bars
Internal muntin bars
Internal muntin bars
Vienna muntin bars
Vienna muntin bars

Reliable fittings

The fittings used by DRUTEX are the perfect solution in terms of security and functionality of the window and door joinery. In addition, it is possible to: use concealed hinges, use fittings that meet burglary protection requirements in class RC1 or RC2..

View All
Multistep tilt mechanism
Multistep tilt mechanism
Comfort Fittings
Comfort Fittings
Concealed
Concealed
TBT Fittings
TBT Fittings
Friction brake
Friction brake
Aluminium balcony pull
Aluminium balcony pull
Reed switch
Reed switch
Hinge covers
Hinge covers
Reed switch
Fanlights closer

Sandblasted glass

The possibility of using sandblasted glass allows us to create any graphic patterns indicated by the customer - matte on transparent glass or transparent on matte glass. This is achieved through technology using a high-pressure sand jet..

View All
Example 1
Example 1
Example 2
Example 2
Example 3
Example 3
Example 4
Example 3
Example 5
Example 5
Example 6
Example 6
Example 7
Example 7
Example 8
Example 8
Example 9
Example 9
Example 10
Example 10
Example 11
Example 11
Example 12
Example 12
Example 13
Example 13
Example 14
Example 14
Example 15
Example 15
Example 16
Example 16
Example 17
Example 17
Example 18
Example 18
Example 19
Example 19
Example 20
Example 20
Example 21
Example 21
Example 22
Example 22
Example 23
Example 23
Example 24
Example 24

Compare products

Technical data
Number of chambers
Installation depth
Number of gaskets
Thermal transmittance
Glass packages
MB-86N SI
MB-86N SI
3
77 mm
3
Uw = 0,76 W/(m2K)**For a window measuring 1,230x1,480 mm – calculation method = 0,76 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar.
17,5-70 mm

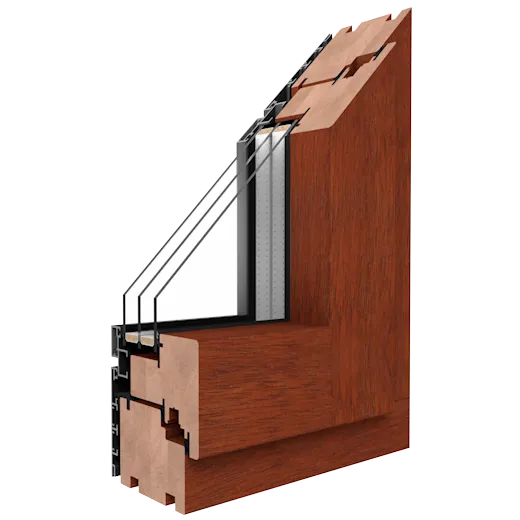

DUOLINE - 68, 78, 88
DUOLINE - 68, 78, 88
Solid profile
"Duoline 68 - 68 mm + spacer bar 14 mm
Duoline 78 - 78 mm + spacer bar 14 mm
Duoline 88 - 88 mm + spacer bar 14 mm"
3
"Duoline 68 from Uw = 0,90 W/(m2K)*
Duoline 78 from Uw = 0,84 W/(m2K)**
Duoline 88 from Uw = 0,79 W/(m2K)**
*For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar.
**For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar."
"Duoline 68 to 46 mm
Duoline 78 to 50 mm
Duoline 88 to 50 mm"

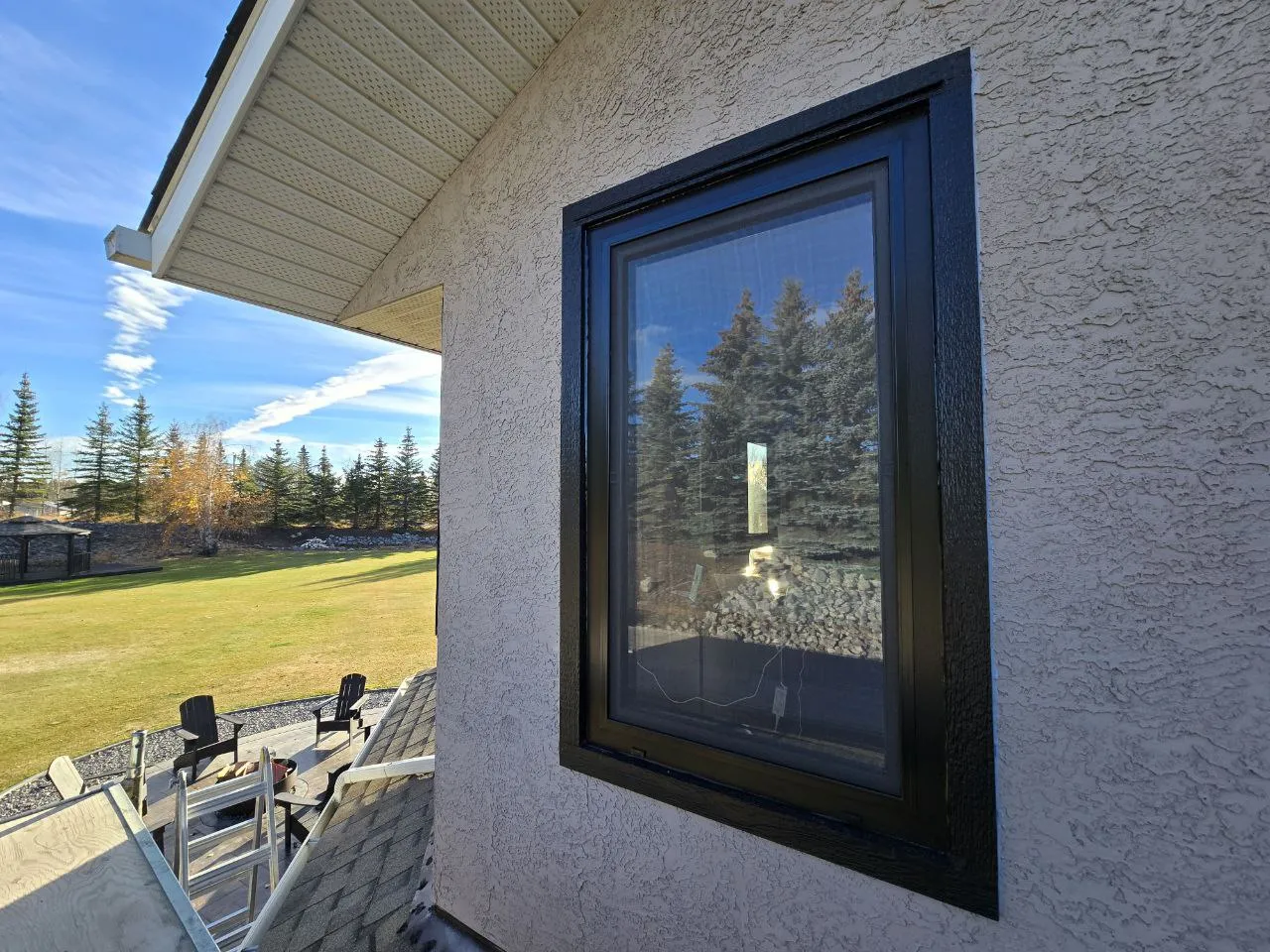

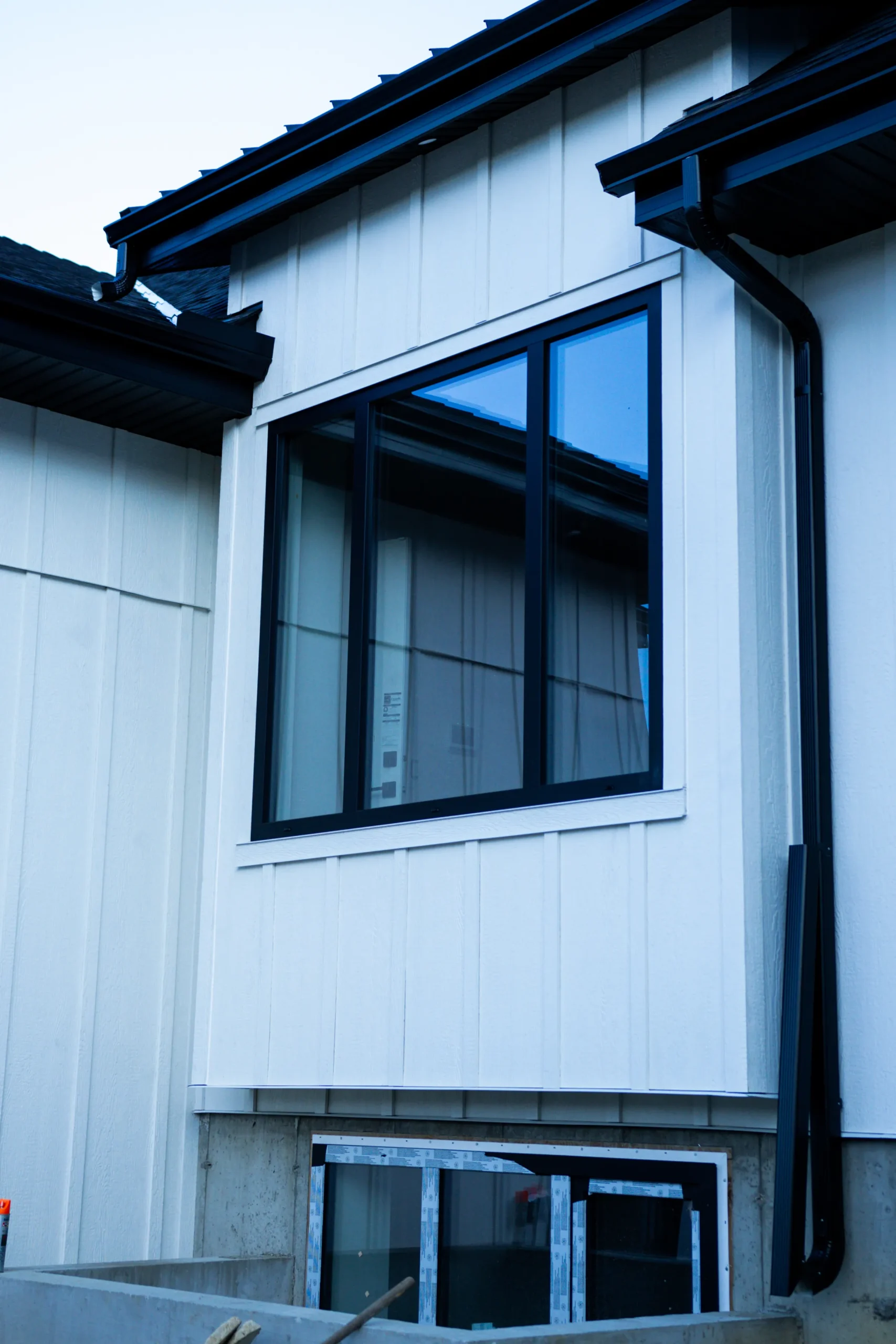

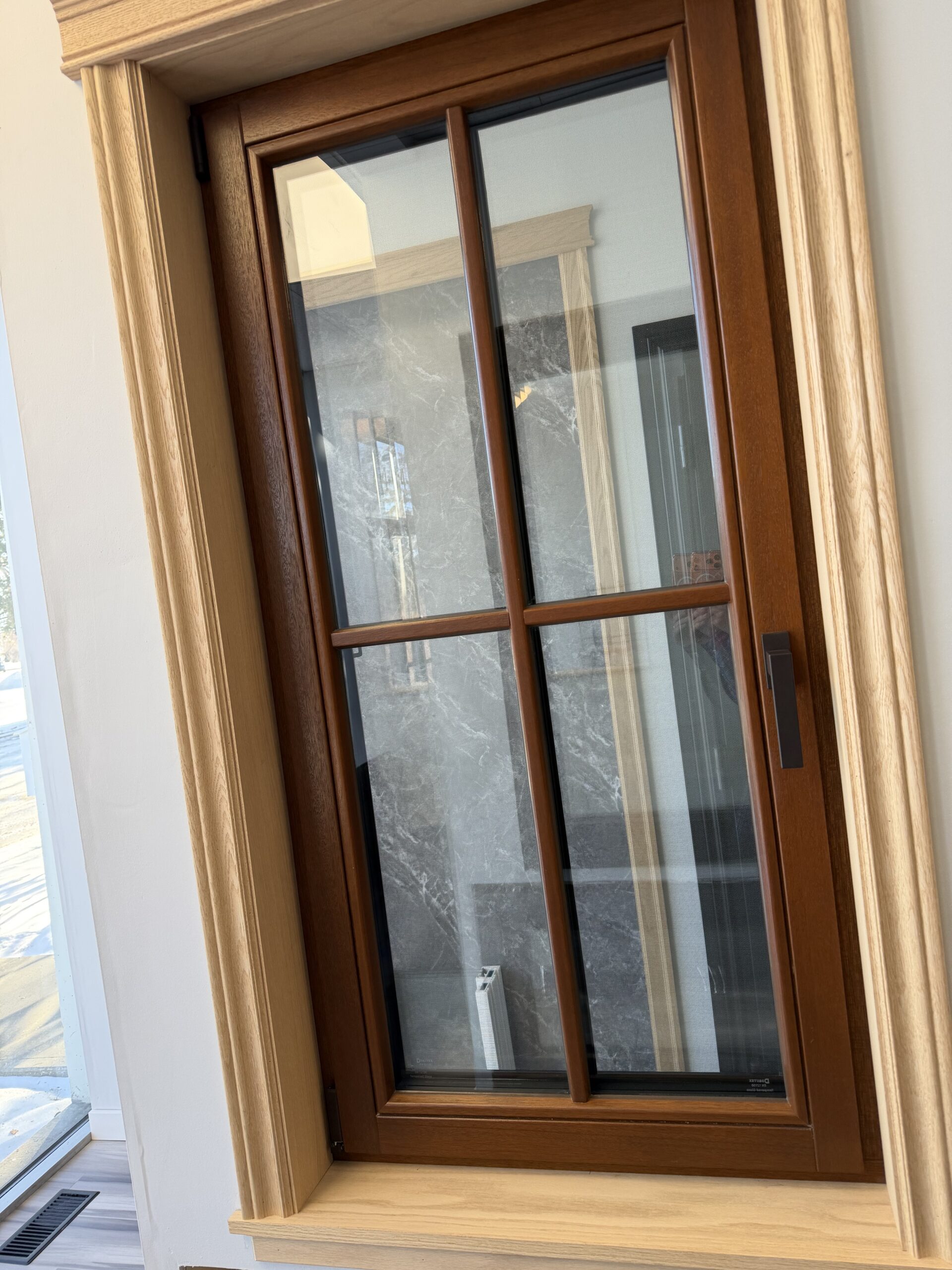

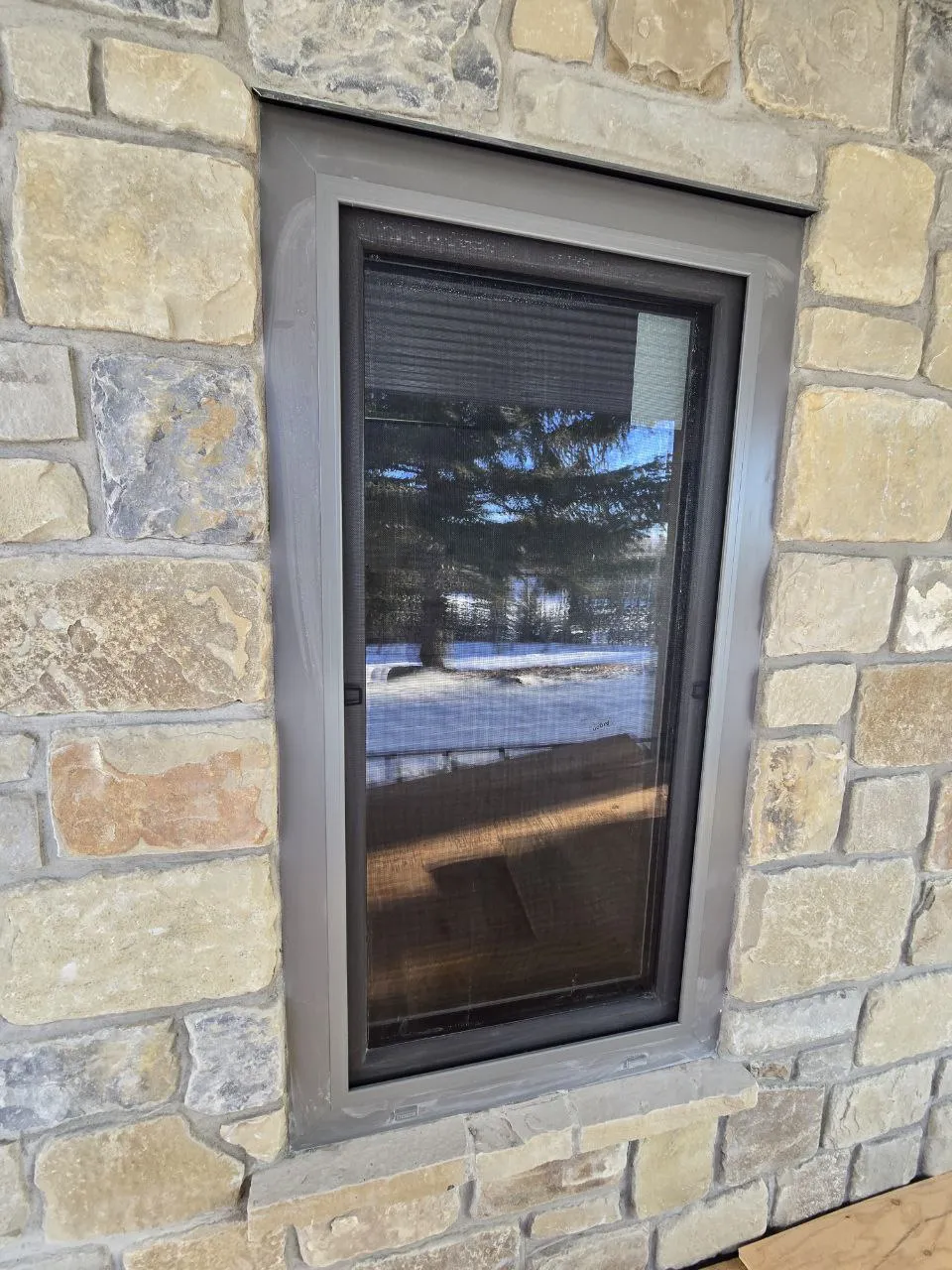

Our Projects
